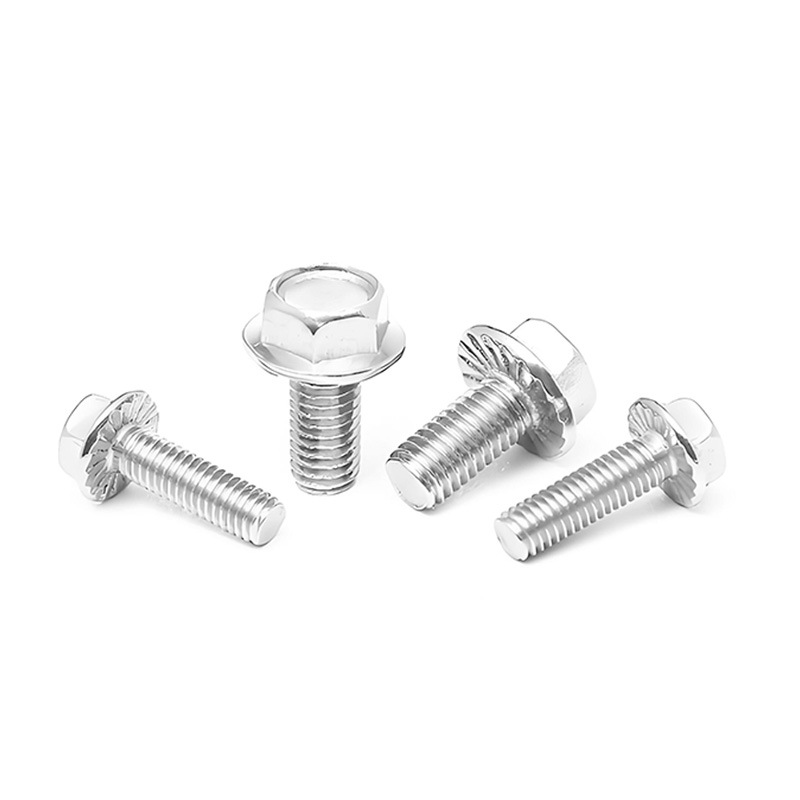

Flange Bolts are named by the ridge or skirt around the bolt head. A flange bolt is designed to provide the holding power as if a washer was installed. The skirt acts as a distributor of the entire clamping load. Flange bolts help make jobs easier and faster with their multi-feature function.
Flange Bolts are named by the ridge or skirt around the bolt head. A flange bolt is designed to provide the holding power as if a washer was installed. The skirt acts as a distributor of the entire clamping load. Flange bolts help make jobs easier and faster with their multi-feature function. It is available in stainless steel, carbon steel, and alloy steel to bear more wear and tear while also making it more corrosion resistant.
| Flange Bolt | |
| Standard: | IFI-111,DIN6921 |
| Diameter: | 1/4”-1 1/2”,M5-M36 |
| Length: | ≤800mm or 30" |
| Material: | Carbon Steel, Alloy Steel, Stainless Steel, Brass |
| Grade: | SAE J429 Gr.2, 5,8; ASTM A307Gr.A, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9;A2-70,A4-70,A4-80 |
| Thread: | M,UNC,UNF |
| Finish: | Plain,Black oxide, Zinc Plated(Clear/Blue/Yellow/Black), H.D.G, Nickel, Chrome,PTFE,Dacromet,Zinc Nickel,Zinteck. |
| Packing: | bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand |
| Supply Ability: | 1500 tons per month |
| MinimumOrder: | 500KG or according to customer demand |
| Trade Term: | FOB/CIF/CFR/CNF/EXW/DDU/DDP |
| Payment: | T/T, L/C,West union,Paypal.etc |
| Market: | Europe/South&north Amrica/East&South east Asia/Middle East/Australia and ect. |
Application
Used in automotive applications, plumbing, and more, flange bolts feature a washer like flange beneath the bolt head that speeds production time and distributes the clamping load, offering protection to the mating surface.
Stainless steel hex plug, 304/316 material, precision thread, good sealing, easy installation, corrosion resistant, for plumbing, hydraulic and industrial pipeline.
Wing Bolts, or Wing Screws, featured elongated ‘wings’ that are designed to be easily operated by hand. They can be used with Wing Nuts to create an exceptional fastening that can be adjusted from various positions.
Carriage bolts (round head with a square neck) are commonly used in wood connections. The square neck under the round head will seat into the hole in the wood to prevent the head from turning.
U bolts are used as framing fasteners and anchors for foundations and roofs, pipe and conduit holders and bolts for motor and engine shaft components.
Hex bolts can be used for many different applications that include fastening wood, steel, and other construction materials for projects such as docks, bridges, highway structures, and buildings.
